Thermal Master P3: A New Benchmark in Compact Manual-Focus Thermal Imaging |
|
The Thermal Master P3 is one of those rare devices that, at first glance, invites curiosity but also skepticism. A USB dongle smaller than many flash drives, yet equipped with manual focus optics and an AI-driven resolution enhancement system? It almost sounds like marketing hyperbole. But after extended hands-on testing, the P3 proves to be far more than a novelty gadget—it is a serious imaging tool with surprising capability packed into an impressively compact form.
A Remarkable Evolution: In the evolving landscape of miniature thermal imaging solutions, the P3 represents an important step forward. It bridges the gap between simplified consumer dongles and full-sized professional cameras, offering real optical control, excellent image enhancement algorithms, and a cleverly engineered housing that feels far more premium than its size suggests. A Maturing Industry: Where the P3 Fits In: The past few years have seen unprecedented advancement in Chinese thermal cores, driven initially by the need for mass-production of thermography systems during the pandemic. That accelerated development has not slowed down. Manufacturers are now pushing boundaries not just in sensitivity and resolution, but also in physical integration—shrinking complete imaging systems into impossibly small footprints. The Thermal Master P3 is a product of this new era. It showcases a blend of precision optics, high-sensitivity VOx sensor technology, and AI-assisted image upscaling that simply did not exist at this size category a few years ago. While many thermal dongles rely primarily on software to make up for small sensors, the P3 takes a different approach by focusing on optics and detailed control, giving users more influence over the actual thermal scene being captured. Imaging Core & Resolution: Small Sensor, Big Performance: At the heart of the P3 sits a 256 × 192, 12 μm microbolometer operating at 25 Hz. On paper, this positions the P3 firmly in the mid-range class—identical to popular dongles like the Infiray P2 Pro and Seek Compact Pro. But numbers alone don’t tell the story. The P3 layers several image-processing technologies on top of this sensor: X³IR™ Resolution Enhancement This AI-assisted super-resolution mode expands the visual output to 512 × 384 pixels. It doesn’t magically create real sensor pixels, of course, but it genuinely does enhance fine detail and edge clarity. When comparing side-by-side images with X3 on and off, the processed output shows less aliasing and more natural thermal gradients. RazorX™ Detail Enhancement This algorithm improves micro-contrast and fine structure visibility. In practice, RazorX makes materials with small temperature differentials—such as plastics, PCB traces, and insulated surfaces—stand out more clearly. IQ+™ Temperature Accuracy Control This may be the most important algorithm. IQ+ dynamically compensates for ambient temperature drift, stabilizing the camera’s precision after warm-up. Many budget dongles suffer from drifting or unstable readings; the P3 attempts to mitigate this behavior at the software level. Optics & Manual Focus: The P3’s Defining Feature: Most USB thermal dongles rely on fixed-focus lenses with wide fields of view. The P3 breaks from the pack by offering true manual focus, allowing users to optimize image sharpness anywhere from macro distances (~8 mm) to infinity. Lens Quality The lens sits deeply recessed inside a protective barrel, a design choice that helps prevent scratches and accidental impacts. Build quality is excellent—the mechanical focus ring features smooth rotation, with a viscosity that feels like high-grade optical grease. It strikes the correct balance between ease of adjustment and resistance to accidental movement. Field of View (40° × 30.2°) Thermal Master wisely avoided an ultra-wide lens. The 40° horizontal FOV is an excellent compromise: wide enough for general inspection, narrow enough for decent IFOV and detailed PCB or electronics analysis. Practical Experience Using the focus ring feels natural and precise. Remarkably, the P3’s depth of field is quite forgiving—slight focus inaccuracies do not immediately degrade image quality, which is ideal when one-handed operation is required. This optical flexibility is a major advantage over competitors like the P2 Pro, which relies purely on fixed focus paired with optional macro lenses. With the P3, macro work, mid-range inspection, and long-range thermal viewing are all possible using the same optical assembly. Build Quality & Mechanical Engineering: The P3 looks and feels nothing like a budget thermal dongle. Instead, it resembles a premium piece of photographic equipment. Housing The case is built from aerospace-grade metal alloy with a satin-black coating and tasteful brass accents. It is robust, rigid, and pleasantly weighty for its size. USB-C Connector The connector is securely integrated into the top of the housing and slightly extended to accommodate smartphones with cases. There is no wobble, softness, or flex—an area where many competitors fail. Portability & Practicality The included rugged carry case is compact but spacious enough to fit the dongle and all adapters.

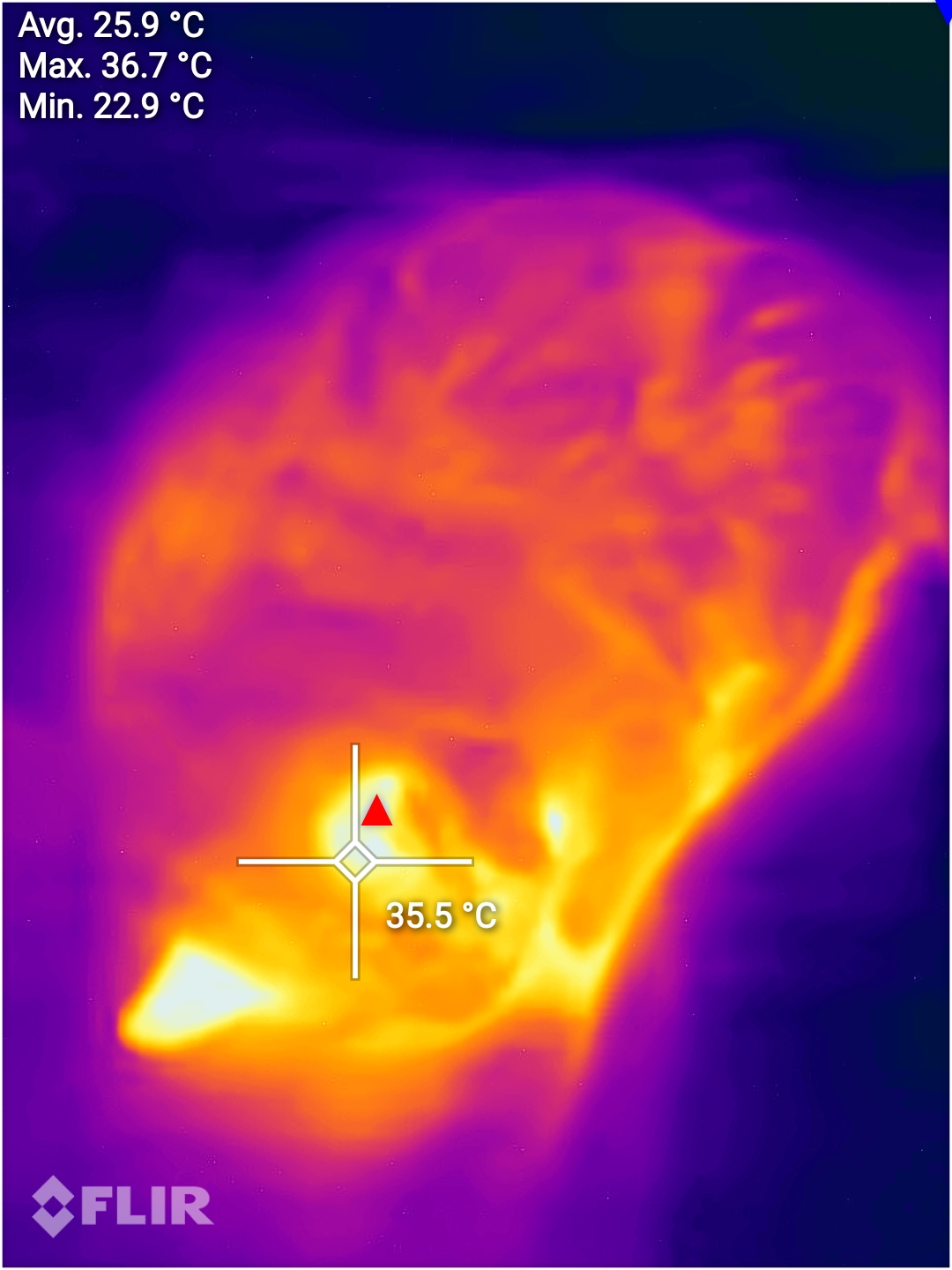

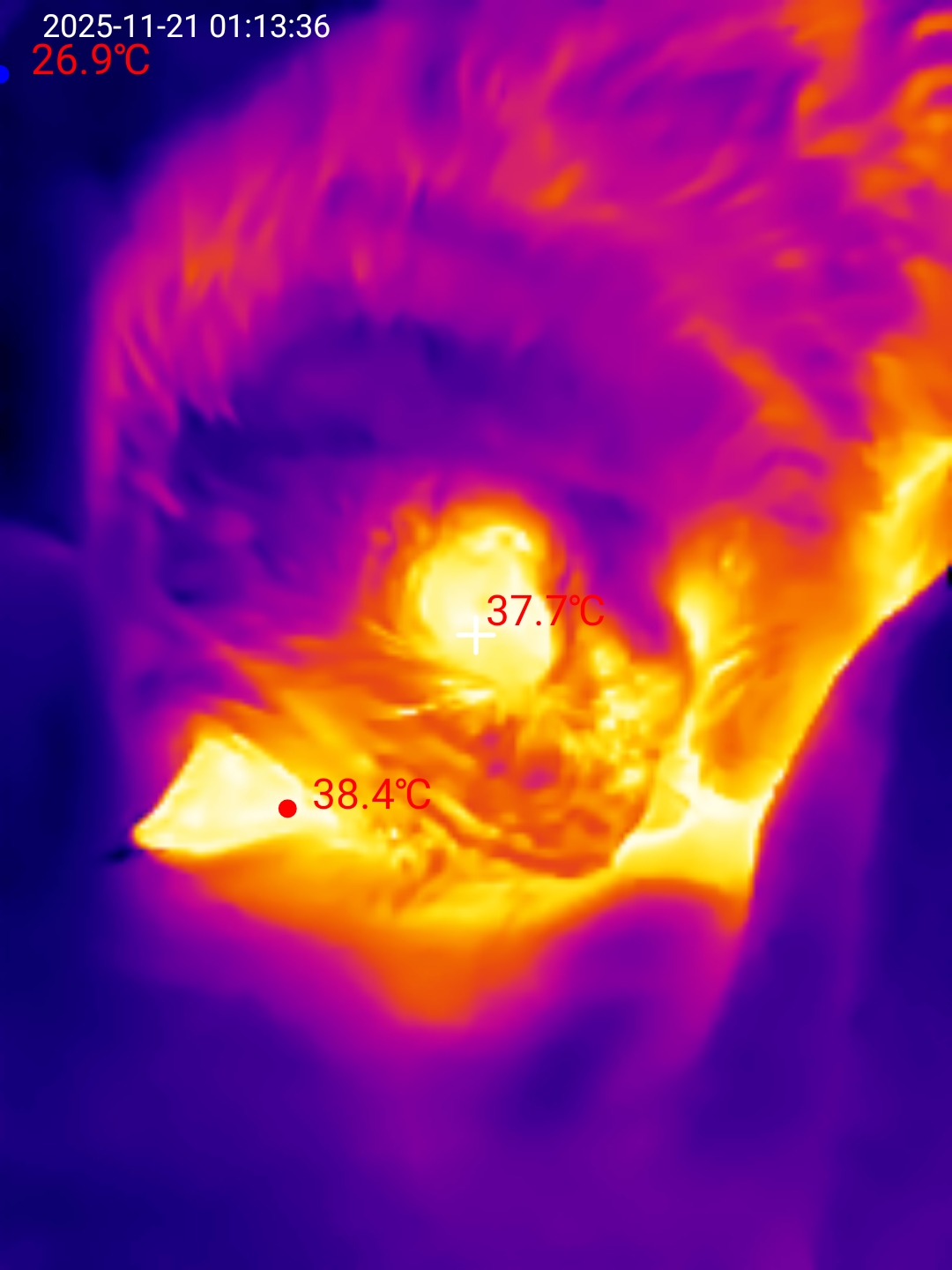

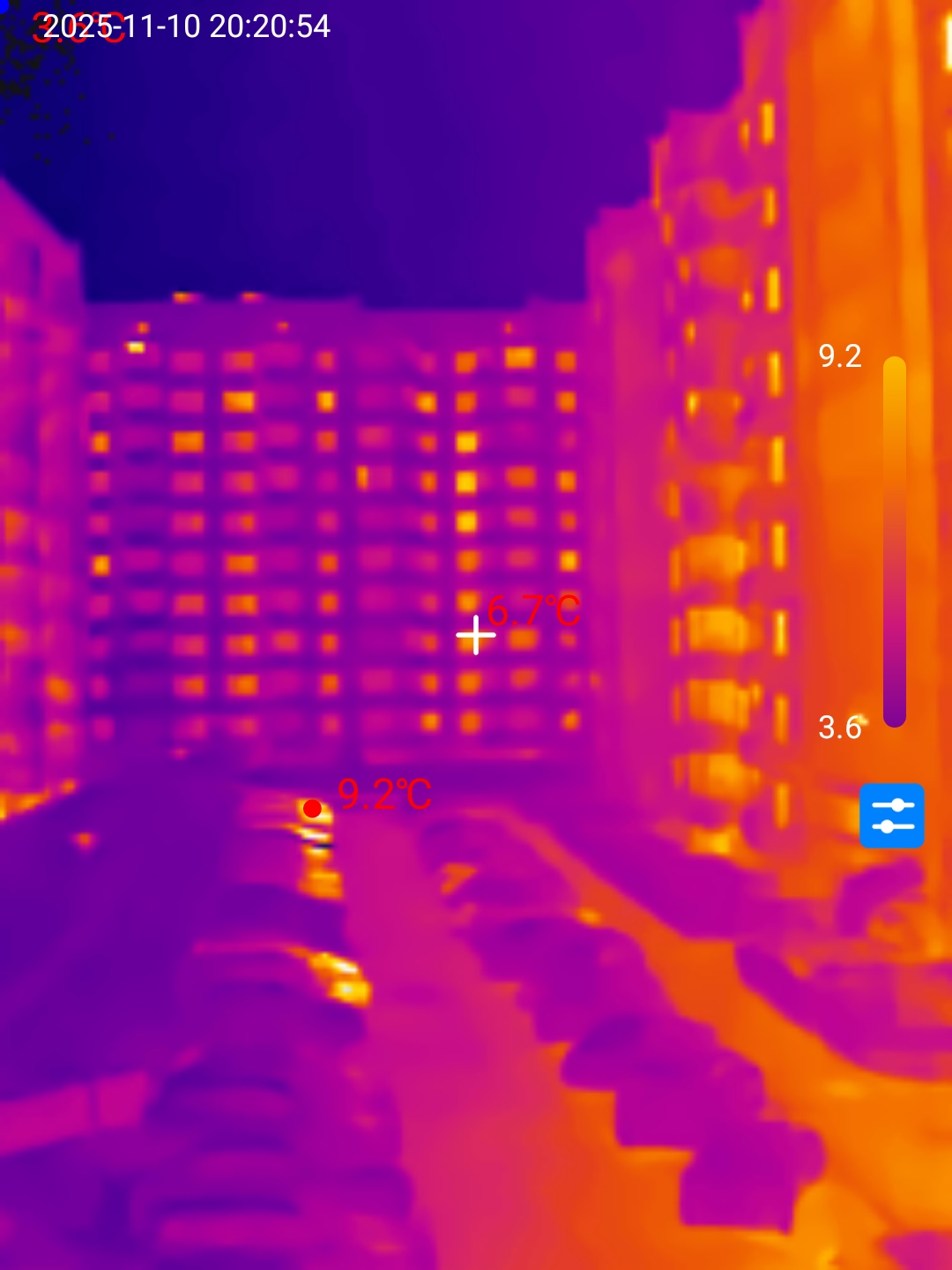

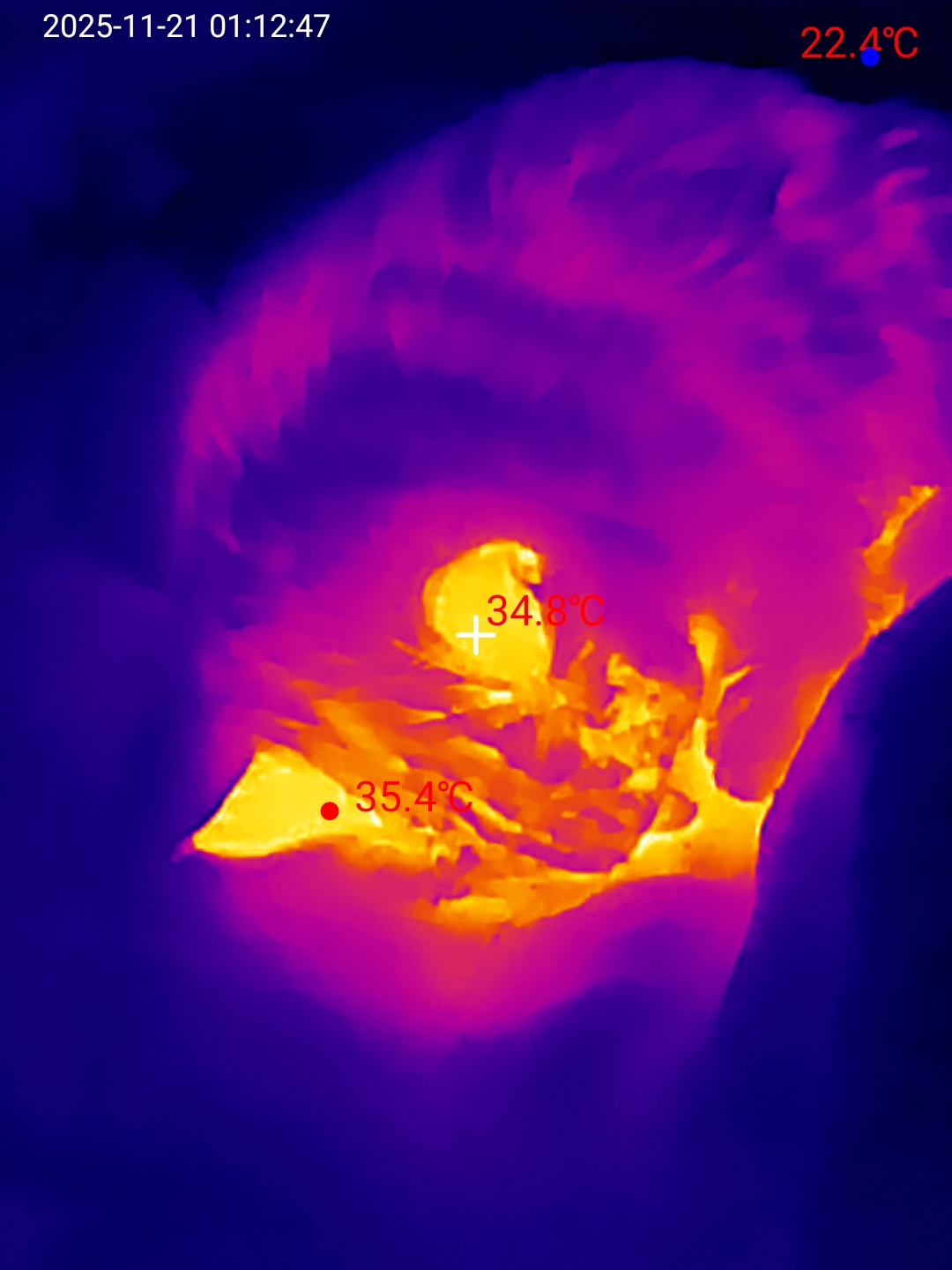

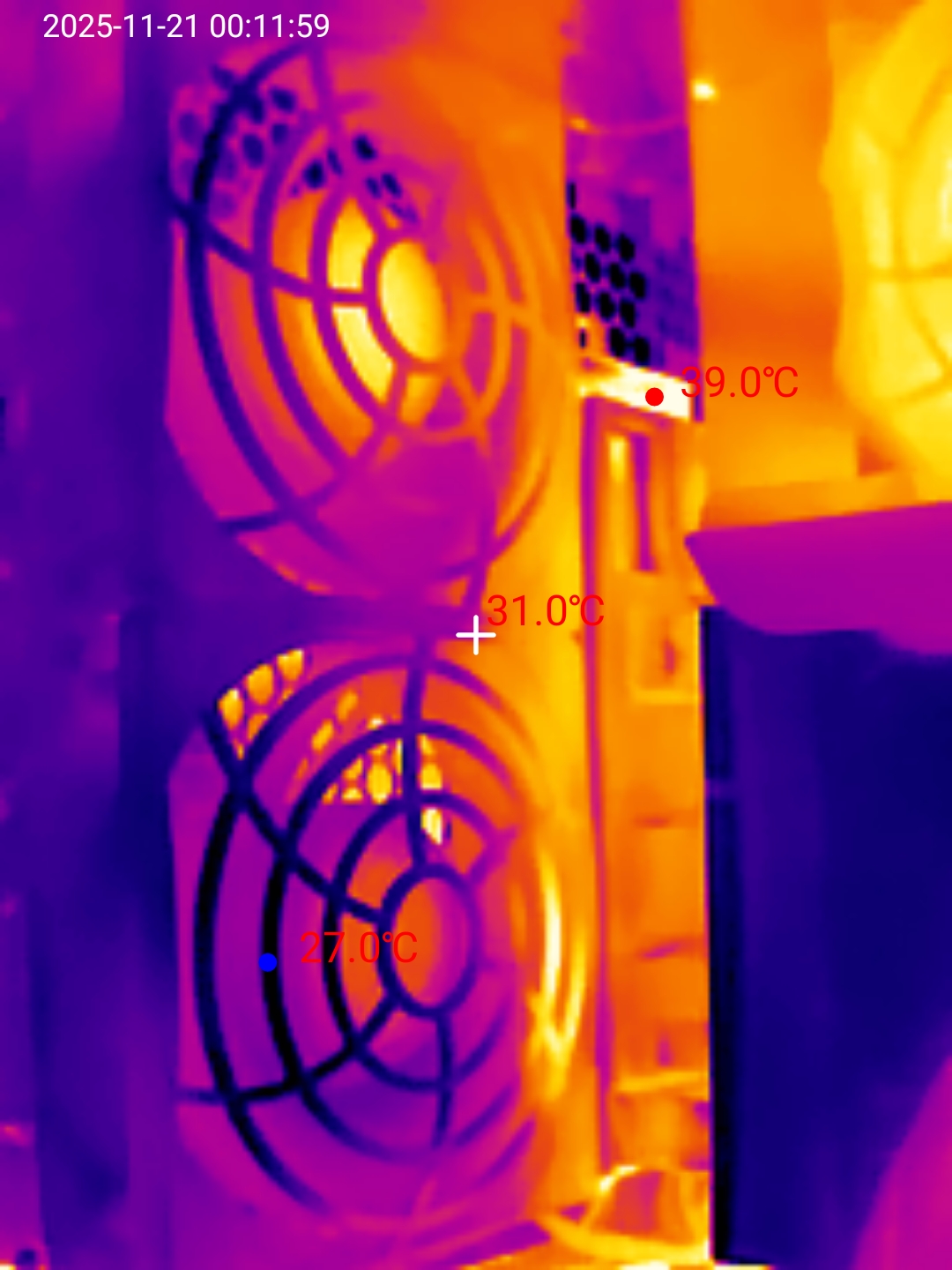

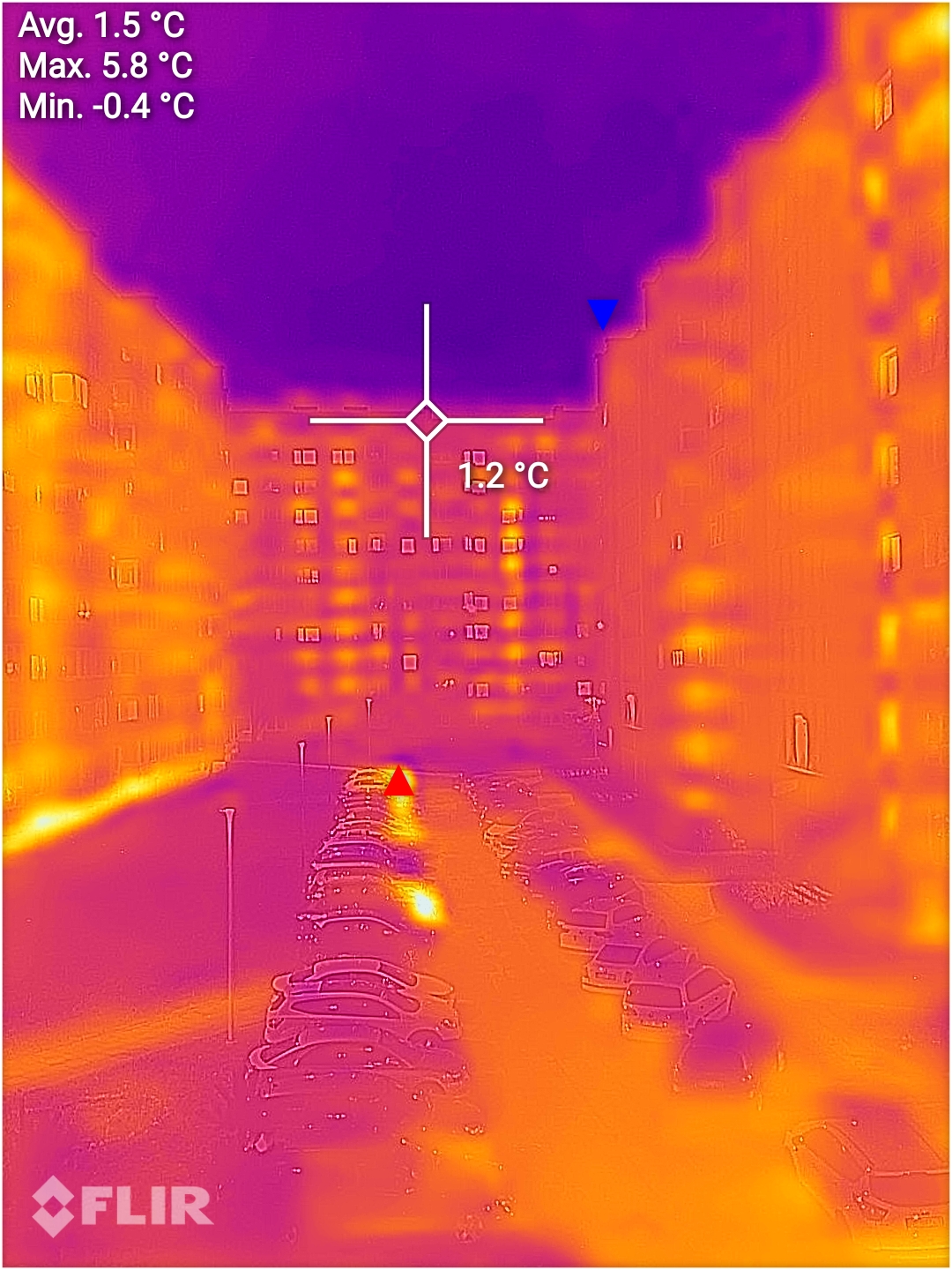

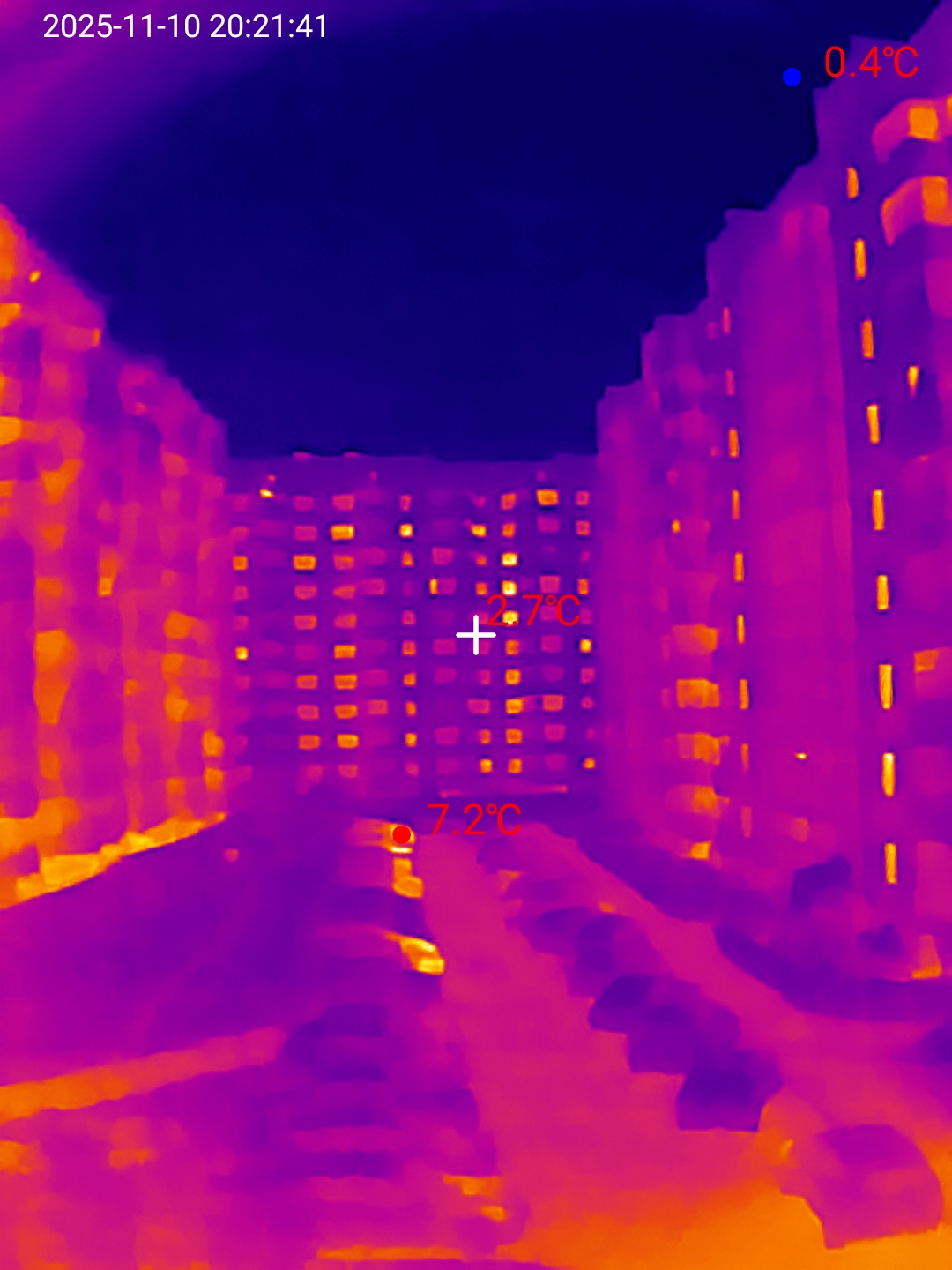

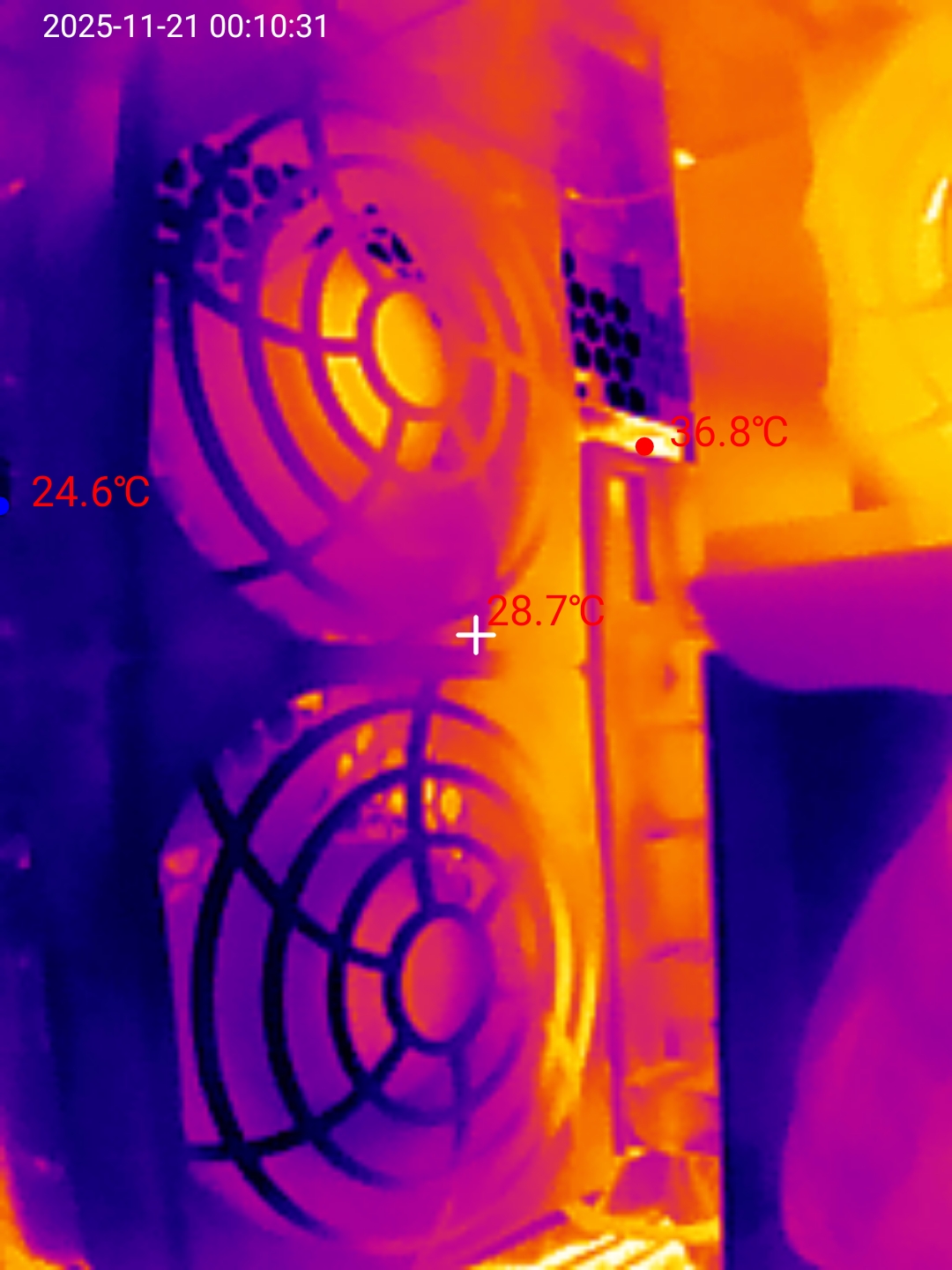

This multi-OS approach makes the P3 more flexible than competition: The P3 supports Android, iOS, and Windows. This broad support sets it apart from many competitors that focus on a single platform. Mobile App (Temp-Master) Auto-recognition works reliably on Android GPS metadata tagging is included by default (users should disable if privacy is a concern) Image saving format is fixed and large—good for quality, less ideal for storage The app supports isotherms, spot meters, high/low markers, and other common thermography tools Windows Software Installation is fast and simple, language selection is English by default. Thermal Performance: Real-World Observations: To evaluate the P3, it was tested for: PCB & Electronics Thermal Analysis - Manual focus is a game changer here. The P3 can focus down to macro distances, making it perfect for: Voltage regulator inspection Faulty component identification High-resolution PCB thermal mapping Outdoor thermal imaging - Heat leak detection Floor heating mapping Electrical panel inspection Small animal detection - Cat / Dog body temperature check Electronics fault-finding - Mechanical / Automotive Work, The extension cable allows imaging in tight engine compartments. Portable Field Work, the rugged build and compact size make the P3 a good choice for: Wildlife observation Outdoor thermal scanning Environmental analysis Appliance inspection Faulty component detection Good working equipement thermal profiling Final Verdict: A Mature, Capable, and Highly Versatile Thermal Dongle: After extended testing, it’s clear that the Thermal Master P3 is not merely another USB thermal camera—it is the most capable compact thermal imaging tools currently available. What makes it stand out:
In Conclusion: The P3 earns a place not just in a toolkit, but also as a serious imaging instrument suited for engineers, technicians, inspectors, and enthusiasts who want full control in a very small package. Infiray P3 PRO Specifications:

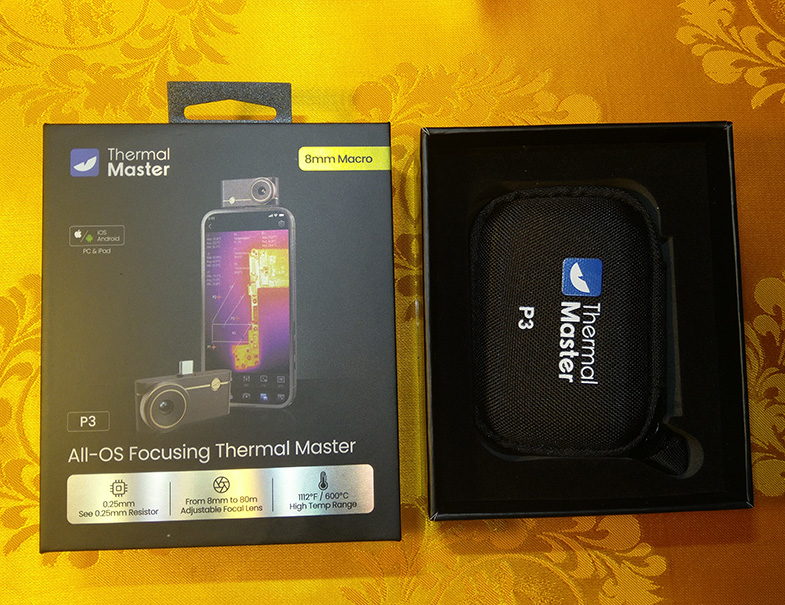

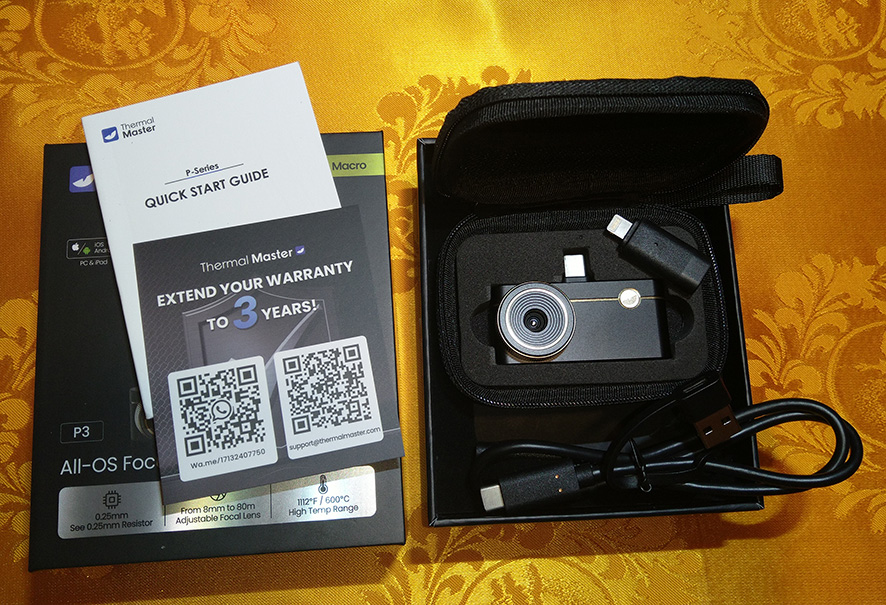

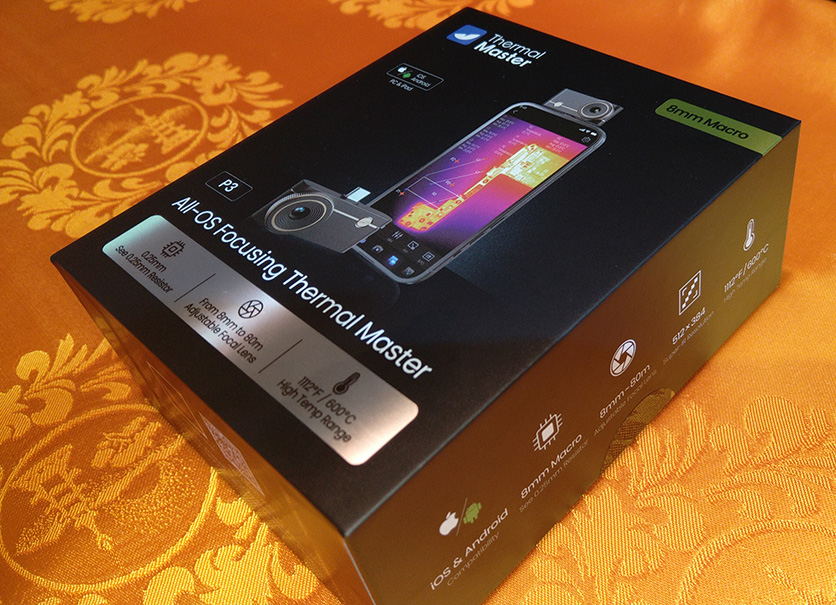

Current Draw: Measured current consumption from the Host mobile phone: 45 mA phone continued to supply power even when the APP was not running and the P3 continued to draw 45mA.Unboxing:
|
||||||||||||||||||||||||||||||||||||||||||
